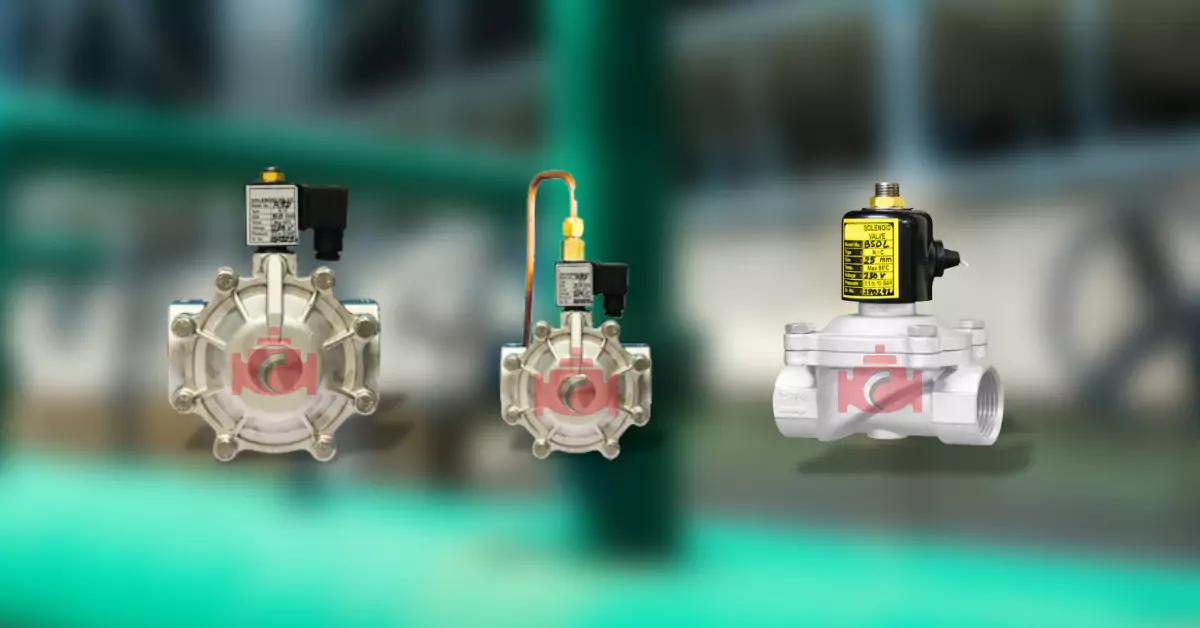

What is a Diaphragm Operated Solenoid Valve?

Diaphragm Operated Solenoid Valve: The Ideal Solution for Precise Flow Control

Diaphragm Operated Solenoid Valve are a staple in industries that require precision, durability and fluid control. These valves are a great way to control fluid flow in a variety of industries, from water treatment to food processing and HVAC to chemical handling. You can choose the appropriate solenoid operated diaphragm valve by understanding how they work.

What is Diaphragm Operated Solenoid Valve?

A diaphragm operated solenoid valve operates by electric coils that open and close the flow. Solenoid valves are suitable for automated systems because they use electromagnetic coils to operate the valve, unlike traditional valves which rely on manual control. A flexible membrane called a diaphragm sits in between the ports of the inlet or outlet and is the main mechanism for opening and closing the flow.

They are highly valued in industries that require reliability and durability.

What is the working principle of a solenoid valve with a diaphragm type?

pilot operated diaphragm type solenoid valves, control the diaphragm indirectly through a pilot device. The coil opens the pilot, which lowers the pressure above the diaphragm, lifting the diaphragm and allowing fluid through. The coil de-energizes the coil, which closes the pilot port and lowers the diaphragm to seal the flow. The valve can handle higher flow rates and pressures with this indirect operation, compared to solenoid-operated valves that operate directly.

Pilot operated Diaphragm Solenoid Valves have been widely used in many industries, including:

  • Water and Wastewater Treatment : for consistent fluid regulation.
  • HVAC System: Controlling the heating and cooling liquids.
  • Food and Beverage processing: Ensuring clean flow control.
  • Handling Hazardous Chemicals: Manage corrosive and hazardous liquids.

Diaphragm operated solenoid Valves: Key Benefits

The diaphragm operated solenoid valve has many benefits that make it a highly desired component in various automation and control applications. Here are a few of its key benefits:

Superior Flow Control

They are ideal for any application that requires accuracy. Diaphragm solenoid valves are designed to open and close consistently. This allows for precise flow rates, and maintains system integrity.

Durability and reliability

Diaphragm-operated solenoid valves are designed to be durable and have a minimal amount of wear. Flexible diaphragms reduce the stress placed on internal parts, while the solenoid system ensures constant operation. In industrial environments, where costly downtime is possible, this durability becomes essential.

Energie Efficiency

pilot operated diaphragm solenoid valves are less energy-consuming than direct acting valves because they use a pilot to help with valve activation. The energy saving feature makes it a great choice for those facilities looking to cut costs.

The versatility of applications

The solenoid-operated designs of diaphragm vales are ideal for many industries including water treatment, food processing and pharmaceuticals. They are versatile because they can handle a variety of fluids including air, water and viscous liquids.

Low Maintenance Required

This diaphragm acts as a protective barrier, protecting the valve’s internal components from contamination and damage. diaphragm solenoid operated valves with diaphragms are easier to maintain because of this isolation.

There are several types of solenoid valves that operate by diaphragm.

Businesses can select the right diaphragm valve for their application by understanding the various types.

The Diaphragm solenoid valve has a direct-acting diaphragm

These solenoid-operated valves do not require pilot pressure and only use electromagnetic forces to operate the diaphragm. They are perfect for low- to medium-flow applications and systems with minimal pressure differences.

Pilot operated Diaphragm type Solenoid Valves

pilot operated diaphragm type solenoid valves, as mentioned above, use pilot control for the movement of diaphragms, which makes them perfect for high flow and high pressure applications. This type of valve is often used in industrial automation, where consistency is important.

Selecting the right solenoid valve with a diaphragm

Consider factors such as pressure, flow rate and fluid type when selecting a diaphragm operated solenoid valve. Choosing the right size and material of the valve will ensure that it meets industry requirements. Consider:

  • Material compatibility: Check that the material of the diaphragm is compatible with fluid. EPDM or Viton is a popular choice for chemical resistance.
  • Temperature of Operation: Choose a Valve that is able to withstand your temperature range.
  • Type of Connection: Based on the installation needs, choose between threaded and flanged connectors.

Concorde Valves and Automations: Your best choice

Concorde Valves and Automations provides a wide range of diaphragm operated solenoid valves that are designed to be long-lasting and efficient. Each valve is manufactured to strict standards and undergoes rigorous quality controls. This ensures that you get a high-quality product. Concorde Valves and Automations brings together years of experience with the latest technology to provide products that maximize client efficiency.

FAQs

What is diaphragm-operated solenoid valves?

The diaphragm-operated solenoid is a type of automated valve that utilizes an electromagnetic coil for controlling the diaphragm’s movement. This allows or blocks fluid flow depending on whether the coil has been activated.

What is the function of a diaphragm solenoid operated by a pilot?

Pilot operated solenoid diaphragm valves use a pilot system to indirectly control the diaphragm. The pilot mechanism is opened when the valve is energized. This reduces the pressure of the diaphragm, and allows it to be lifted for fluid flow.

Which industries are most likely to benefit from solenoid diaphragm valves?

These valves are ideal for industries such as HVAC, water treatment, food and beverages processing, chemical handling, and more. They offer precision, durability, and can be used in many different ways.

Are diaphragm solenoid valves energy efficient?

Yes, especially diaphragm-operated solenoid valves. Due to the pilot-assisted function, they use less energy than other direct-acting valve types.

When choosing a diaphragm operated solenoid valve, what factors should I take into consideration?

Take into account factors such as operating pressure, flow rates, fluid compatibility and type of connection. Also ensure the material of the diaphragm is compatible with the fluid type being controlled.

What are the qualities that make Concorde Valves and Automations an excellent supplier?

Concorde Valves and Automations provides high-quality solenoid diaphragm valves that are designed to be durable and efficient. They combine their expertise with a rigorous quality-control process to ensure top performance for various industrial applications.

Conclusion

diaphragm operated solenoid valve are essential components for industries that require reliable and efficient fluid control. This valve is a great option for automating systems because of its many benefits. These include energy efficiency, durability and low maintenance. Concorde Valves and Automations provides a wide range of valves that are designed to satisfy the needs of various industries. From water treatment to food production, they ensure optimal performance and reliability.

Diaphragm Operated Solenoid Valve

Discover the advantages of a Diaphragm Operated Solenoid Valve for efficient fluid control in industrial applications.

Product Brand: Concorde Valves and Automations

Product Currency: INR

Product Price: 2290

Price Valid Until: 2025-03-31

Product In-Stock: InStock

Editor's Rating:
5
