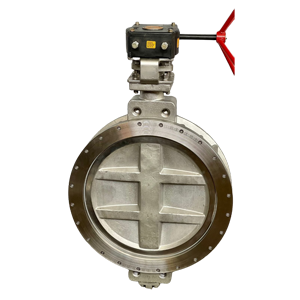

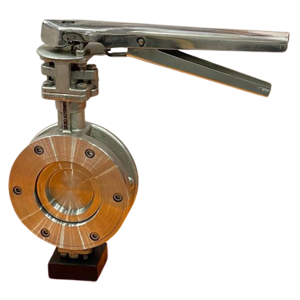

Spherical Disc Butterfly Valve
Spherical Disc Butterfly Valve Manufacturer in India | Concorde Valves & Automations
Concorde Valves & Automations is a reliable Spherical Disc Butterfly Valve Manufacturers in India, offering high-performance industrial valves designed for efficient flow regulation and tight shut-off in demanding pipeline systems. These valves feature a specially engineered spherical disc design that improves sealing performance and flow efficiency.
Our spherical disc butterfly valves are manufactured using high-quality materials such as cast iron, ductile iron, carbon steel and stainless steel to ensure durability, corrosion resistance and reliable operation. These valves are widely used in industries such as oil & gas, chemical processing, water treatment plants and power generation systems where robust flow control is essential.
Why Choose Concorde Valves & Automations?
- ✔ ISO Quality Manufacturing Standards
- ✔ 14+ Years Industry Experience
- ✔ Advanced Engineering & Testing Facilities
- ✔ Durable Industrial Grade Materials
- ✔ Pan India Supply & Export Capability
- ✔ Reliable After-Sales Support
Types of Spherical Disc Butterfly Valves
- Wafer Type Spherical Disc Butterfly Valve – Compact and lightweight design suitable for space-saving installations.
- Lug Type Spherical Disc Butterfly Valve – Allows easy maintenance and supports end-of-line service applications.
- Flanged Spherical Disc Butterfly Valve – Designed for heavy-duty and high-pressure industrial systems.
- Double Offset Spherical Disc Butterfly Valve – Provides improved sealing and reduced wear for longer service life.
- Triple Offset Spherical Disc Butterfly Valve – Ideal for critical applications requiring zero leakage and high performance.
- Metal Seated Spherical Disc Butterfly Valve – Suitable for high-temperature and abrasive media applications.
How Spherical Disc Butterfly Valves Work
Spherical disc butterfly valves are designed for efficient flow control with enhanced sealing performance. These valves feature a specially designed spherical-shaped disc that improves contact with the seat, ensuring tighter shut-off and reduced leakage.
The valve operates through a quarter-turn (90-degree) rotation of the disc using a lever, gear, or actuator. When the disc is aligned with the flow, the valve remains open, allowing smooth fluid passage. When rotated perpendicular to the flow, the spherical disc presses firmly against the seat, effectively stopping the flow. This design enhances durability and minimizes wear over time.
As a trusted spherical disc butterfly valve manufacturer in Mumbai, we provide high-performance valves engineered for superior sealing, longer service life, and reliable operation across a wide range of industrial applications.
Applications
- Oil & Gas Processing Plants
- Chemical Processing Industries
- Water & Wastewater Treatment Plants
- Power Generation Facilities
- Industrial Pipeline Systems
- Process Control Applications
Benefits
- Improved sealing performance with spherical disc design
- Low torque operation and smooth valve movement
- Excellent corrosion and wear resistance
- High pressure and temperature handling capability
- Reliable and long-lasting industrial performance
- Reduced maintenance requirements
Technical Specifications
| Parameter | Details |
|---|---|
| Valve Type | Spherical Disc Butterfly Valve |
| Sizes Available | DN 50 to DN 1200 (2" to 48") |
| Pressure Rating | Up to PN 40 / Class 300 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Duplex Steel, Bronze |
| Seat Material | EPDM, NBR, PTFE, Metal-to-Metal |
| End Connection | Flanged, Wafer, Lugged, Double Flanged |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -20°C to 300°C |
Advantages
- Enhanced Sealing Efficiency: Spherical disc design ensures better sealing and tight shut-off.
- High Durability: Strong materials provide long service life even in harsh environments.
- Versatile Operation: Can be operated manually or automated using pneumatic or electric actuators.
- Efficient Flow Control: Designed to minimize turbulence and pressure drop.
- Wide Industrial Applications: Suitable for water, chemicals, oil and industrial fluids.
Spherical Disc Butterfly Valve Supplier in India
Concorde Valves & Automations is a trusted spherical disc butterfly valve supplier in India offering durable, precision-engineered butterfly valves designed for reliable performance in industrial flow control systems across various sectors.
We also offer a wide range of high-quality butterfly valves designed for different industrial applications including water treatment plants, HVAC systems and industrial pipeline flow control solutions.
Frequently Asked Questions
A Spherical Disc Butterfly Valve is a quarter-turn valve that uses a spherical-shaped disc to regulate fluid flow. It combines the tight shutoff of a ball valve with the compact design of a butterfly valve.
The spherical disc design provides a superior seal compared to flat disc butterfly valves. This results in reduced leakage and better performance under high-pressure conditions.
These valves are widely used in oil & gas, water treatment, chemical processing and HVAC systems. Their versatile design makes them suitable for both liquid and gas flow control.
Yes, they are engineered to perform reliably under high-pressure and high-temperature conditions. Always refer to the product specifications to confirm suitability for your application.
Installation involves mounting the valve between two pipe flanges and securing it with bolts. Refer to Concorde Valves & Automations' installation guide or contact our technical team for assistance.
Routine inspection is recommended every 6–12 months depending on operating conditions. Regular maintenance ensures optimal performance and extends the valve's service life.
You can purchase directly through the Concorde Valves & Automations website or by contacting our sales team. We offer a range of sizes and configurations to suit your specific needs.
Yes, our team of experts is available to assist with product selection, installation queries and troubleshooting. Reach out to us via our website or customer support hotline for prompt assistance.
Looking for Spherical Disc Butterfly Valve Supplier in Mumbai?
We supply spherical disc butterfly valves engineered for superior sealing, smooth operation, and precise flow control. Built for durability and low maintenance, these valves deliver consistent performance across a wide range of industrial applications, including water, air, and process systems.
