Dual Plate Check Valves
Dual Plate Check Valves Manufacturer In India
Dual plate check valves are unsung heroes in the industrial world, ensuring fluids flow smoothly without backflow that could disrupt operations. Understanding these components is vital for valve engineers, procurement managers, and industry professionals in maintaining efficient systems. In this blog post we'll dive deep into their applications, advantages, and why Concorde Valves & Automations stands as an industry-leading manufacturer.
Introduction to Dual Plate Check Valves

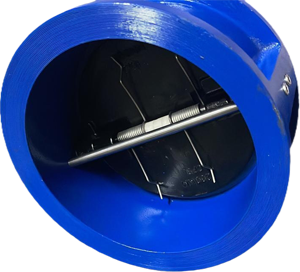

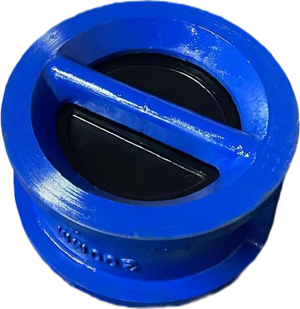

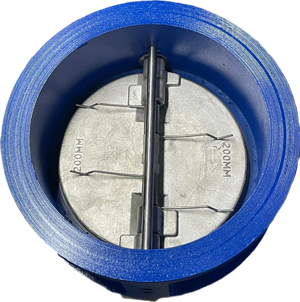

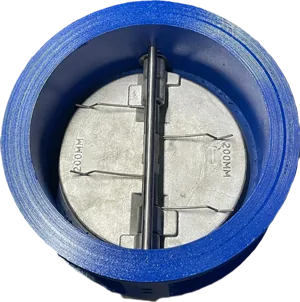

Dual plate check valves are indispensable in various industrial settings, from oil refineries to chemical plants. Their primary role is preventing reverse flow, protecting equipment and ensuring smooth operations. These check valves utilize two spring-loaded plates which close automatically when flow stops - offering reliable flow regulation solutions with little disruption of operations or effort needed from operators. Their compact size makes them popular among industry professionals.
Dual plate check valves play an integral part in industrial settings. By helping maintain system integrity, reducing downtime, and providing safety against backflow, they play a critical role in operational efficiency and operational cost-cutting measures. Businesses looking for superior dual plate check valves should prioritize purchasing high-quality ones to maximize performance while keeping maintenance costs to a minimum.
Understanding the applications and benefits of dual plate check valves are crucial for professionals involved with system design and maintenance. With this knowledge comes the ability to select the appropriate valve for specific applications ensuring smooth operations. In the following sections we'll explore various advantages offered by these check valves when compared with other forms.
Specifications of Dual Plate Check Valves
| Valve Type | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Body Material | PN 10, PN 16, PN 25, PN 40, ANSI 150-600 |
| Plate Design | Two spring-loaded plates |
| Pressure Class | PN16, PN25, PN40, ANSI Class 150, 300 |
| Size Range | 2 inches to 48 inches |
| End Connection | Flanged, Wafer, Lug |
| Temperature Range | -20°C to 200°C (Varies with material) |
| Sealing Material | EPDM, NBR, Viton, PTFE |
| Operation | Automatic, with non-slam design |
| Certification & Standards | API 594, ASME B16.34, EN 558 |
| Applications | Oil & Gas, Water Treatment, Chemical Processing, HVAC, Power Plants |
This table outlines the common specifications of dual plate check valves, highlighting the essential details that help industry professionals select the right valve for their specific needs. The choice of body material, pressure class, and sealing material can vary based on the application requirements and operating conditions.
Advantages of Dual Plate Check Valves
Dual plate check valves' key advantage lies in their efficiency: their design reduces pressure drop for smoother fluid flow compared to other valve types, particularly useful when maintaining pressure is critical, such as in pipelines or high-pressure systems. By minimizing pressure loss, dual plate check valves contribute to energy savings and improved system performance - two significant benefits of their usage that cannot be underestimated.
Dual plate check valves stand out with their compact design, taking up less space than traditional swing check valves and being easier to handle and install, thus cutting labor costs and downtime significantly. Procurement managers may find dual plate check valves an attractive solution because of their reduced footprint and simplified setup processes.
Weight reduction is another key advantage offered by dual plate check valves. As they weigh significantly less than swing check valves, dual plate check valves are easier to transport and install; further reducing shipping and handling costs as a result of their reduced weight. In industries where every ounce matters - such as aerospace or offshore applications - their reduced weight can make a meaningful impactful statement about efficiency.
Dual Plate vs. Swing Check Valves
Dual plate check valves stand out from their swing counterparts by offering several advantageous features that distinguish them, most notably their reduced pressure drop, which is key in maintaining system efficiency. Swing check valves, however, tend to create more turbulence and resistance in flow, leading to higher pressure drop levels than dual plate versions.
Dual plate check valves' compact size makes them a convenient addition in confined environments; swing check valves often require larger spaces for installation due to their bulky designs; this makes space saving essential. Dual plate valves offer an effective space-saving solution without compromising functionality.
Dual plate check valves deliver superior sealing performance. Their spring-loaded mechanisms ensure more reliable backflow protection compared to single disc swing check valves, making dual plate check valves the go-to choice for industry professionals looking for reliable fluid control solutions that combine efficiency, compactness, and superior sealing performance.
Manufacturing Process of Dual Plate Check Valves
At Concorde Valves & Automations, the manufacturing process of dual plate check valves involves cutting-edge technology and adherence to rigorous quality standards. Each valve is crafted to meet industry specifications, ensuring reliable performance in various applications. The high-quality materials used in manufacturing contribute to the valves' durability and resistance to wear and corrosion.
The production process begins with precision engineering, where each component is meticulously designed to optimize performance. Advanced machining techniques, combined with thorough testing protocols, ensure that every valve meets the highest standards of quality and reliability. Concorde Valves & Automations's commitment to excellence is evident in every step of the manufacturing process.
As a leading dual plate check valve manufacturer in India, Concorde Valves & Automations prioritizes customer satisfaction. By leveraging innovative technology and expertise, the company delivers valves that meet the diverse needs of industries worldwide. From material selection to final inspection, every aspect of the manufacturing process reflects a dedication to producing top-tier products.
Uses and Applications of Dual Plate Check Valves
Dual plate check valves find applications across a wide range of industries, from oil and gas to water treatment and beyond. Their ability to prevent backflow makes them indispensable in systems where maintaining unidirectional flow is crucial. For example, in oil and gas pipelines, dual plate check valves ensure the safe transport of fluids by preventing reverse flow that could compromise pipeline integrity.
In the water treatment industry, dual plate check valves play a vital role in ensuring the efficient operation of filtration and distribution systems. By preventing backflow, these valves help maintain water quality and protect equipment from damage. Similarly, in chemical processing plants, dual plate check valves safeguard sensitive processes by maintaining the correct flow direction.
Real-world examples of dual plate check valve applications abound. From preventing contamination in food processing to maintaining the integrity of HVAC systems, these valves are versatile components that enhance system performance. By understanding the specific needs of each application, industry professionals can leverage the advantages of dual plate check valves to achieve operational success.
Pricing and Weight Considerations
When considering the purchase of dual plate check valves, pricing and weight are critical factors. The cost of these valves can vary based on several factors, including materials, size, and pressure rating. At Concorde Valves & Automations, competitive pricing is a priority, ensuring that customers receive high-quality products at value-driven prices.
Weight considerations also play a significant role in the selection of dual plate check valves. Lighter valves offer advantages in terms of transportation, installation, and overall system design. The reduced weight of dual plate check valves can lead to cost savings in shipping and handling, making them an attractive option for industries where weight limitations are a concern.
Concorde Valves & Automations provides a comprehensive dual plate check valve price list, allowing customers to make informed purchasing decisions. By offering transparent pricing and exceptional value, the company reinforces its position as a trusted supplier of dual plate check valves in India and beyond.
Importance of Quality in Valves
The significance of obtaining valves from reliable manufacturers cannot be overstated. High-quality valves are essential for ensuring safety, efficiency, and longevity in industrial applications. Poor-quality valves can lead to operational failures, increased maintenance costs, and potential safety hazards.
Concorde Valves & Automations places a strong emphasis on quality, delivering valves that meet stringent industry standards. By using top-grade materials and advanced manufacturing techniques, the company ensures that its valves provide optimal performance and reliability. This commitment to quality is reflected in the trust and loyalty of its customers.
For industry professionals, partnering with a reputable dual plate check valve manufacturer is a strategic decision that contributes to overall system success. By prioritizing quality, businesses can achieve greater efficiency, reduce downtime, and enhance the safety of their operations.
