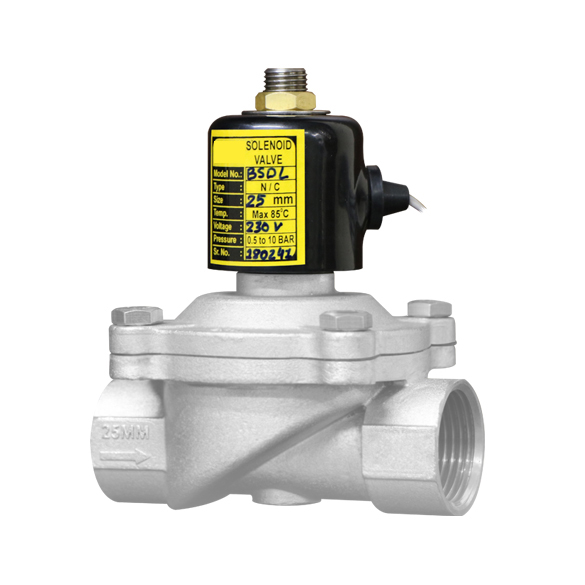

2/2 Way Low Pressure Diaphragm Type Solenoid Valves
Concorde Valves & Automationss: India’s Leading Manufacturer and Supplier of 2/2 Way Low Pressure Diaphragm Type Solenoid Valves
When it comes to fluid control in various applications, the 2/2 way low pressure diaphragm type solenoid valve stands out as a reliable and efficient choice. At Concorde Valves & Automationss, we pride ourselves on being India’s leading manufacturer and supplier of these specialized valves. In this article, we'll explore what makes diaphragm solenoid valves essential for low pressure applications, their advantages, and how they function.
What is a Diaphragm Type Solenoid Valve?
A diaphragm type solenoid valve is an electromechanical device used to control the flow of liquids and gases. It consists of a diaphragm that moves to open or close the valve, allowing or stopping the flow of fluid. These valves are particularly effective in low pressure applications, such as water and air systems, making them ideal for a variety of industries.
Key Features of Solenoid Diaphragm Valves
- 2/2 Way Functionality: The 2/2 way design means the valve has two ports: one for inlet and one for outlet. When the solenoid is energized, the diaphragm lifts, allowing fluid to pass through; when deactivated, the diaphragm seals the inlet, stopping flow.
- Low Pressure Operation: Designed specifically for low pressure applications, these valves are capable of handling pressures typically ranging from 0 to 5 bar, making them suitable for various water and air applications.
- Durability: Made from high-quality materials, our solenoid diaphragm valves are built to last, ensuring reliable performance in demanding environments.
Technical Specifications
| Body & Bonnet Construction | ASTM A351 Gr.CF8/CF8M/CF3M |
| Diaphragm | Nitrile / Neoprene PTFE |
| Temperature of Fluid | -50°C to 80°C max (High Temperature on Request) |
| Pressure Rating | 0 to 5 bar max. (0 to 6 bar on request) |
| IP 20 (IS 2147) Solenoid Coil | General Purpose |
| IP 65 (IS 2147) Solenoid Coil | For Water Proof application |
| Group I, IIA, IIB, & IIC (IS/IEC 60079-1) Solenoid Coil |
For Explosion/ Flame Proof application |
| Voltage | 24, 48, 110, 230 Volt AC, 50 Hz 12, 24, 48, 110, 230, Volt DC |
Advantages of Using Low Pressure Solenoid Valves
- Precision Control: These valves provide precise flow control, essential for applications requiring accurate fluid management.
- Energy Efficiency: The low power consumption of solenoid operated diaphragm valves makes them an economical choice for continuous operation.
- Versatility: Suitable for both low pressure water and low pressure air applications, they can be used in a variety of industries, including HVAC, food and beverage, and pharmaceuticals.
Applications of Diaphragm Solenoid Valves
- Water Treatment: Used to control the flow of water in treatment facilities, ensuring optimal operation.
- Aquarium Systems: Ideal for regulating water flow in aquariums, helping maintain aquatic environments.
- Medical Equipment: Essential for controlling fluids in various medical devices and applications.
Why Choose Concorde Valves & Automationss?
As India's leading manufacturer and supplier of low pressure solenoid valves, we are committed to delivering high-quality products that meet the diverse needs of our customers. Our extensive experience in the industry ensures that we provide reliable, durable, and efficient solutions tailored to your requirements.
