M-TORQ Series Scotch Yoke Actuator Manufacturer & Supplier in India
High torque scotch yoke actuators built for reliable industrial valve automation in harsh operating environments.

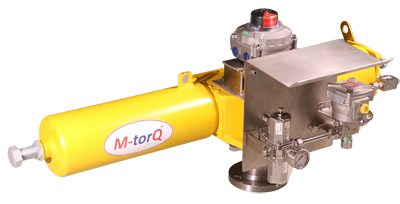

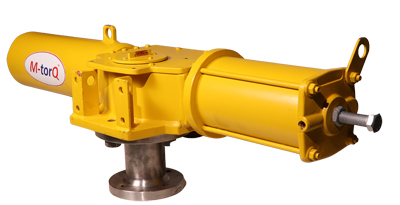

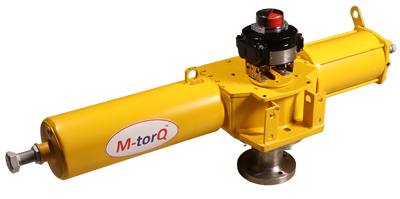

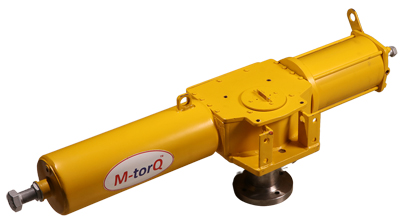

Heavy Duty Scotch and Yoke Actuators
Heavy Duty Scotch Yoke Actuators for Industrial Valve Automation
Concorde Valves & Automations supplies M-TORQ heavy duty scotch and yoke pneumatic actuators engineered for high-torque valve automation on large butterfly, ball and gate valves. As a trusted industrial valve manufacturer and supplier in India, we deliver reliable, high performance actuators for demanding process automation applications.
Scotch yoke actuators convert linear pneumatic cylinder motion into rotary quarter-turn output, delivering significantly higher torque than rack-and-pinion designs — ideal for large-diameter butterfly and ball valve automation.
Whether you need heavy duty scotch & yoke actuators for a new installation, OEM order, or replacement, Concorde Valves offers competitive pricing, fast dispatch from Mumbai, and pan-India delivery.
Request a Quote
Why Choose Concorde Valves & Automations?
Quality, certification and dependable supply that industrial buyers across India rely on.
ISO Quality Manufacturing Standards
Every actuator is produced under a certified quality system, ensuring consistent torque output and repeatable performance.
14+ Years Industry Experience
Extensive experience automating valves across oil & gas, chemical and power generation sectors.
Heavy Duty Industrial Grade Actuators
Robust construction engineered for continuous duty in harsh and corrosive operating environments.
Customized Torque Solutions Available
Tailored torque output and mounting configurations engineered around your specific valve requirements.
Pan India Supply & Export Capability
Fast dispatch from our Mumbai facility to industrial hubs across India and overseas markets.
Reliable After-Sales Support
Dedicated technical assistance for selection, installation and long-term maintenance.
Types of Heavy Duty Scotch and Yoke Actuators
We supply single-acting (spring-return, fail-safe) and double-acting scotch yoke actuators, sized across a wide torque range for on/off and modulating valve automation.
Single Acting Scotch and Yoke Actuator
Uses spring return mechanism for fail-safe operation during power or air failure.
Double Acting Scotch and Yoke Actuator
Operates using air pressure for both opening and closing without spring assistance.
Pneumatic Scotch and Yoke Actuator
Powered by compressed air, ideal for high torque and heavy-duty valve automation.
Hydraulic Scotch and Yoke Actuator
Designed for extremely high torque applications using hydraulic pressure.
Manual Override Scotch and Yoke Actuator
Equipped with manual operation option for emergency control.
High Torque Scotch and Yoke Actuator
Engineered for large valves requiring maximum torque output in demanding conditions.
How a Scotch Yoke Actuator Works
A scotch yoke actuator converts linear piston motion into quarter-turn rotary output through a yoke and slot mechanism. When compressed air or hydraulic pressure acts on the piston, it moves linearly inside the cylinder. This movement is transferred through the yoke, converting it into 90-degree rotational motion to operate the valve.
This design naturally generates higher torque at the start and end of the stroke, exactly where quarter-turn valves like ball valves and butterfly valves require it most. The result is smooth, efficient, and reliable valve operation even under high load conditions.
Applications
Scotch yoke actuators are used to automate large butterfly, ball and plug valves in oil & gas, power generation, water treatment and process plants requiring high breakaway torque.
Oil & Gas Processing Plants
Chemical and Petrochemical Industries
Power Generation Plants
Water Treatment Facilities
Refineries and Pipelines
Industrial Automation Systems
Benefits & Technical Specifications
Higher torque output for a given cylinder size compared to rack-and-pinion actuators, robust construction for continuous duty, and fail-safe spring-return options make these actuators a high performance solution for critical valve automation.
Benefits
- High Torque Output: Maximum torque at open and close positions, ideal for large ball valves and high pressure systems.
- Durable Construction: Industrial-grade materials built for long-term performance in harsh and corrosive environments.
- Low Maintenance Design: Fewer moving parts mean reduced wear, lower downtime, and minimal upkeep.
- Compact & Space Efficient: High torque delivery in an optimized body, suitable for tight installation spaces.
- Versatile Operation: Available in single acting and double acting configurations for flexible process control.
- Long Operational Life: Engineered for continuous duty cycles across oil & gas, chemical, and water treatment applications.
- Flexible Mounting Compatibility: ISO standard flange ensures direct fit on most quarter-turn industrial valves.
Technical Specifications
| Actuator Type | Pneumatic Scotch & Yoke (Single / Double Acting) |
|---|---|
| Operation Modes | Single Acting (Spring Return), Double Acting |
| Materials Used | Aluminum, Stainless Steel |
| Pressure Rating | Up to 10 bar |
| Temperature Range (Standard) | -20°C to +80°C |
| Temperature Range (High Temp Option) | -10°C to 200°C |
| End Connection | ISO Standard Mounting Flanges |
| Compliance | ANSI, ISO Standards |
Quality Assurance & Testing
Every heavy duty scotch and yoke actuator passes a strict multi-step inspection process before dispatch to ensure reliable performance in demanding industrial environments.
Torque Output Testing
Verifies maximum torque delivery at open and close positions matches rated specifications.
Hydrostatic & Air Leakage Testing
Confirms cylinder and seal integrity under rated pressure with zero leakage.
Stroke & Cycle Testing
Checks smooth quarter-turn travel and consistent fail-safe spring return performance.
Dimensional & Mounting Checks
Confirms ISO standard flange dimensions for direct fit on quarter-turn valves.
Scotch Yoke Actuator Supplier Across India
Concorde Valves & Automations is a reliable supplier of heavy duty M-TORQ scotch yoke actuators across India, serving industries that depend on high torque, certified valve automation for oil & gas, chemical, power and water treatment applications.
We also manufacture and supply a complete range of industrial valves and pneumatic actuators engineered for reliable flow control and efficient performance across process industries in India and abroad.
Call +91 9326435528What Our Clients Say
Trusted by procurement teams, EPC contractors and plant engineers across India.
“
We have been using M-TORQ heavy duty scotch yoke actuators for our ball valve automation in our chemical plant for over two years. The torque performance and build quality are outstanding. Zero maintenance issues so far.
“
We needed reliable single acting scotch yoke actuators for a critical pipeline project. The team at Concorde Valves understood our requirements perfectly and delivered on time. The actuators have been performing flawlessly in harsh conditions.
“
Switched to double acting scotch yoke actuators from Concorde Valves for our refinery automation. The improvement in valve control precision and operational reliability has been remarkable. Highly recommended for industrial applications.
Need a Quote on Heavy Duty Scotch Yoke Actuators?
Get competitive pricing on M-TORQ heavy duty scotch yoke actuators — single & double acting, up to 10 bar. Fast dispatch with pan-India delivery and export support.
Frequently Asked Questions
Answers to common questions about heavy duty scotch and yoke actuator, materials, sizing and selection.
A scotch yoke actuator is a pneumatic or hydraulic device that converts linear piston motion into rotary output to operate quarter-turn valves like ball valves and butterfly valves. The scotch yoke mechanism provides high torque at the beginning and end of the 90-degree stroke.
A single acting scotch yoke actuator uses spring return to move the valve to a fail-safe position when air pressure is lost. A double acting scotch yoke actuator uses air pressure for both open and close movements and holds its last position on air failure.
They are commonly used in oil & gas pipelines, chemical plants, refineries, power stations, and water treatment facilities to automate ball valves, butterfly valves, and plug valves.
Our scotch yoke actuators are rated for operating pressures up to 10 bar.
Yes. Standard models operate from -20°C to +80°C. High temperature variants are available up to +200°C.
Ball valves, butterfly valves, plug valves, and damper systems with quarter-turn operation are all compatible.
Yes. We offer customized torque solutions to match specific valve sizes and process requirements across industries.
Our heavy duty scotch yoke actuators comply with ANSI and ISO standards.
Scotch yoke actuators deliver higher torque at the start and end of the stroke, making them more suitable for heavy duty and large valve applications. They also have fewer moving parts, resulting in lower maintenance and longer service life.
Yes. Our heavy duty scotch yoke actuators are available in explosion-proof configurations suitable for hazardous area classifications in oil & gas, chemical, and petrochemical plants.
Scotch yoke actuators are used to automate large quarter-turn valves (butterfly, ball, plug) requiring high torque, particularly at the valve's opening and closing extremes.
Scotch yoke actuators deliver higher torque for a given size and are preferred for large or high-pressure valves, while rack-and-pinion actuators are more compact and cost-effective for smaller valves.
Yes, Concorde Valves supplies single-acting spring-return scotch yoke actuators for fail-safe (auto-close or auto-open) operation.

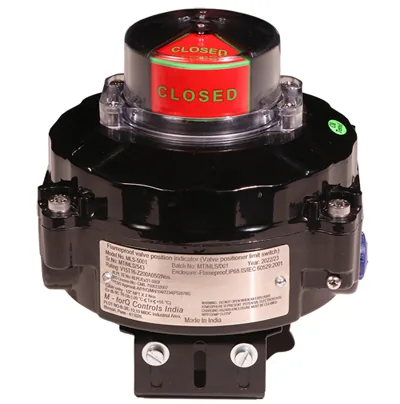

Explore Our Other Products
