Sluice Valve
High Quality ISI Marked Sluice Valves for Water Supply & Industrial Pipelines
Concorde Valves & Automations is a leading Sluice Valve Manufacturer in India, offering high-quality ISI Sluice Valves designed for efficient flow control in water supply and industrial pipeline systems. A sluice valve (gate valve) is used to start or stop the flow of liquid completely. These valves are generally used in water distribution systems, fire hydrant lines, irrigation networks and industrial pipelines. Our valves are manufactured as per ISI standards (IS 14846) ensuring durability, leak-proof performance and long service life.
What is Sluice Valve?
A Sluice Valve is a type of gate valve used to control the flow of water by raising or lowering a gate inside the valve.
- Fully open → Allows full flow
- Fully closed → Stops flow completely
Why Choose Our ISI Sluice Valves?
- ✔ ISI Marked Sluice Valves (IS 14846)
- ✔ High-Quality Cast Iron Body
- ✔ Leak-Proof Sealing Performance
- ✔ Corrosion Resistant Coating
- ✔ Long Service Life
- ✔ Suitable for Water Supply & Industrial Use

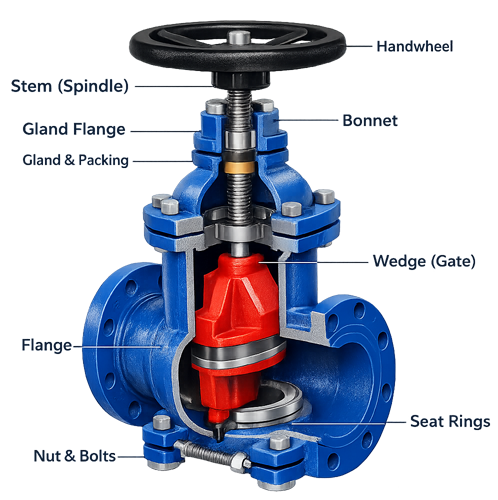

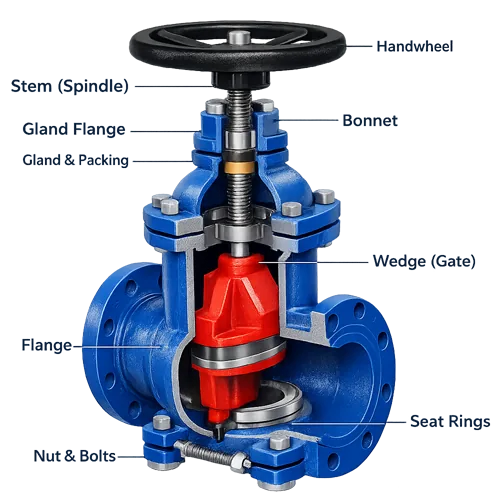

Sluice Valve Parts & Specifications
- Valve Body – Strong outer casing that protects internal parts.
- Bonnet – Top cover of the valve that encloses the stem and provides a leak-proof seal.
- Wedge (Gate) – Moving disc that opens or closes the flow by lifting or lowering inside the valve.
- Seat Rings – Sealing surfaces that ensure tight shut-off when the wedge is fully closed.
- Stem (Spindle) – Connects the handwheel to the gate, transmitting motion for opening and closing.
- Handwheel – Manual operating component used to control the valve position.
- Gland Flange – Compresses the packing material to prevent leakage around the stem.
- Gland Packing – Sealing material (PTFE/graphite) that prevents fluid leakage along the stem.
- Flanges – End connections that allow secure installation in pipelines.
- Nut & Bolts – Fastening components that hold the valve assembly firmly together.
Size Wise Sluice Valve Chart
| Sluice Valve | Size (MM / Inch) | Application |
|---|---|---|
| 50mm Sluice Valve | 50 mm (2") | Small pipelines |
| 80mm Sluice Valve | 80 mm (3") | Residential water supply |
| 100mm Sluice Valve | 100 mm (4") | Commercial pipelines |
| 150mm Sluice Valve | 150 mm (6") | Industrial water systems |
| 200mm Sluice Valve | 200 mm (8") | Large pipelines |
| 6 Inch Sluice Valve | 6 Inch | Heavy-duty applications |
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Sluice Valve |
| Design | Metal Seated |
| Standard | IS 14846 / ISI Marked |
| Pressure Rating | PN 1.6 |
| End Connection | Double Flanged |
| Operation | Manual / Gear / Motorized |
| Temperature Range | Up to 80°C |
| Coating | Epoxy |
Sluice Valve Weight Chart (Approx)
| Size (MM) | Weight (KG) |
|---|---|
| 50 mm | 8 – 10 kg |
| 80 mm | 12 – 18 kg |
| 100 mm | 18 – 25 kg |
| 150 mm | 35 – 50 kg |
| 200 mm | 60 – 85 kg |
| 300 mm | 120 – 180 kg |
Material Details
Our valves are manufactured using high-grade materials:
- Cast Iron Sluice Valve (CI Sluice Valve)
- Ductile Iron (DI Sluice Valve)
- Stainless Steel (for spindle & internal parts)
- EPDM / NBR Rubber (Resilient Seated)
Applications
- Water supply and distribution systems
- Municipal pipelines and infrastructure projects
- Fire hydrant and firefighting systems
- Irrigation and agricultural water flow control
- Industrial pipelines for liquid flow management
- Wastewater and sewage treatment plants
- Dams, reservoirs and water control systems
Benefits
- Full flow with minimal pressure loss
- Tight shut-off and leak-proof sealing
- Durable and long service life
- Low maintenance and easy operation
- Suitable for large diameter pipelines
- Corrosion-resistant coating for extended use
- Cost-effective solution for water systems
Sluice Valve Manufacturer in India
Concorde Valves & Automations is a trusted sluice valve manufacturer in India, offering high-quality ISI marked valves for efficient flow control in water supply and industrial pipeline systems. Our sluice valves are known for their durability, corrosion resistance, smooth operation and competitive pricing. We provide a wide range of sluice valves suitable for water treatment plants, fire hydrant systems, irrigation and various industrial applications.
We also offer a wide range of high-quality valves designed for industrial automation, fluid control systems and pipeline applications across multiple industries.
Frequently Asked Questions
A sluice valve is a type of gate valve used to completely start or stop the flow of liquid in a pipeline. At Concorde Valves & Automations, we manufacture high-quality ISI marked sluice valves designed for long-lasting and reliable performance.
The main function of a sluice valve is to control the flow of fluid by either allowing full flow or completely stopping it. These valves are ideal for on/off applications in water and industrial systems.
The purpose of a sluice valve is to isolate sections of a pipeline for maintenance and operational control, ensuring safe and efficient system performance.
A sluice valve and a gate valve are essentially the same. The term “sluice valve” is commonly used in water supply systems, while “gate valve” is used in broader industrial applications.
Sluice valves are widely used in water supply systems, fire hydrants, irrigation, wastewater treatment and industrial pipelines.
Another name for a sluice valve is a gate valve, as both share the same design and working principle.
Common types include Rising spindle sluice valve, Non-rising spindle sluice valve, Resilient seated sluice valve, Metal seated sluice valve, Double flanged sluice valve. At Concorde Valves & Automations, we offer a wide range of these valves to meet different industrial needs.
Some limitations include Not suitable for flow regulation, Slower operation compared to other valves, Requires more installation space, May be affected by debris in the pipeline.
