In industrial pipeline systems, managing fluid flow and preventing backflow is essential for maintaining system efficiency and protecting critical equipment. One of the most reliable solutions used across various industries is the Non Slam Disc Check Valve. This valve is specifically designed to prevent reverse flow without causing sudden pressure surges or water hammer. Its smooth and fast closing mechanism helps maintain stable pipeline operations while protecting important components such as pumps and compressors.
At Concorde Valves & Automations, we provide high-quality valve solutions designed to meet the demanding requirements of modern industrial systems. In this blog, we will explain what a Non Slam Disc Check Valve is, how it works, its key benefits, and the industries where it is commonly used.

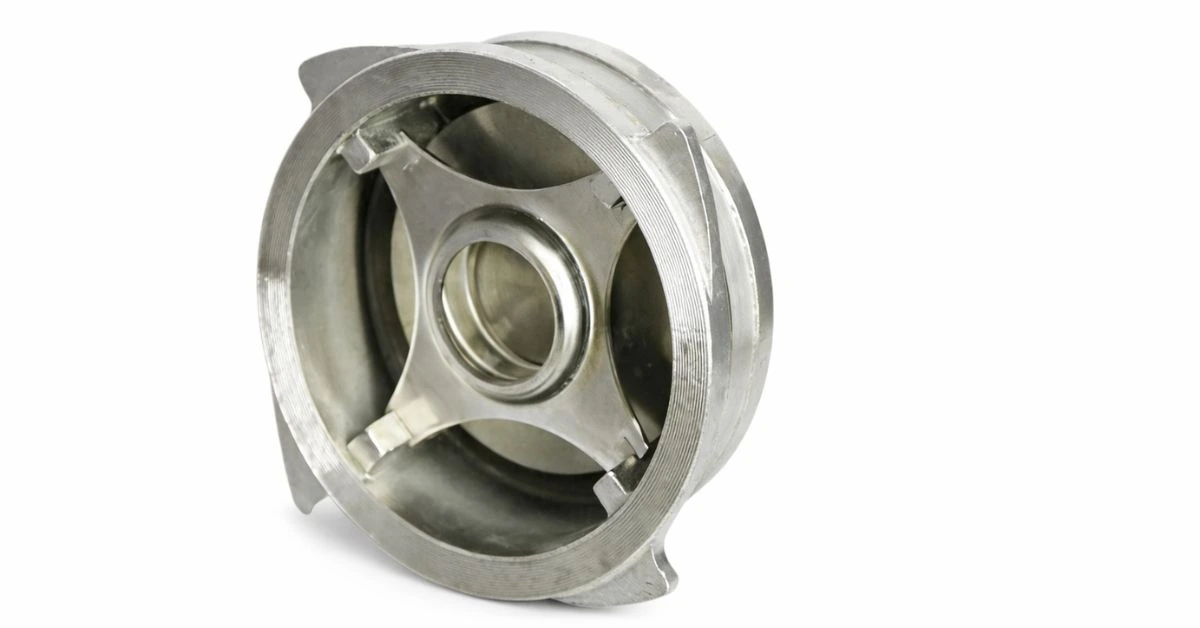

What is a Non Slam Disc Check Valve?
The Non Slam disc check valve is a sort of check valve which allows the flow of fluid in just one direction, while also preventing reverse flow within the pipeline. In contrast to conventional check valves, which can close abruptly and cause tension shocks one is constructed to be closed easily and swiftly. The principal purpose of the Non Slam disc check valve is to stop the effect of water hammer. The water hammer effect occurs in the event that a sudden stoppage or alteration in flow results in a sudden surge of pressure within the pipeline. This surge of pressure can cause damage to pipelines, pumps, or other equipment that is connected to it.
To avoid this problem to avoid the issue, for this reason, the Non Slam Disc Check Valves employs spring-loaded discs which automatically shuts off prior to the beginning of reverse flow. This guarantees smooth operation of the system and decreases the possibility of damage to the mechanical. Due to its robust design, the valve has been extensively used in the industries in which control of fluids and protection of equipment are crucial.
Working Principle of a Non Slam Disc Check Valve
The working mechanism of a Non Slam Disc Check Valves is simple yet highly effective. The valve operates automatically based on the direction and pressure of the fluid flowing through the pipeline.
The operation can be understood in the following steps:
-
Forward Flow Operation
When fluid flows in the correct direction, the pressure pushes the disc open, allowing the fluid to pass through the valve smoothly. As long as the flow continues, the disc remains in the open position and the system operates normally. -
Automatic Closing Mechanism
When the flow slows down or stops, the internal spring pushes the disc back toward the valve seat. This action closes the valve quickly and prevents reverse flow from entering the system. -
Prevention of Pressure Surges
The controlled closing action ensures that the valve shuts before backflow occurs. This prevents sudden slamming and eliminates pressure surges or water hammer in the pipeline.
Because of this smooth and controlled operation, the Non Slam Disc Check Valve is considered a reliable and safe solution for industrial pipeline systems.
Key Components of a Non Slam Disc Check Valve
A Non Slam Disc Check Valves is made up of several important components that work together to ensure smooth and reliable operation in industrial pipeline systems. The valve body forms the outer structure and houses all the internal parts while also connecting the valve securely to the pipeline. Inside the body is the disc, which is the primary moving element that opens when fluid flows in the correct direction and closes when the flow stops or reverses.
Another essential part is the spring mechanism, which helps push the disc back toward the closed position when the flow decreases. This quick response helps prevent reverse flow and ensures smooth valve operation. The valve seat provides a tight seal when the disc closes, preventing leakage within the system. In addition, a guide system helps maintain proper alignment of the disc during operation, improving the overall stability and performance of the valve.
Benefits of Using a Non Slam Disc Check Valve
Numerous industries favor this Non Slam Disc Check Valve due to the advantages it offers in ensuring safe and reliable pipeline operations.
The benefits of this comprise:
-
Protects against Water Hammer
The smooth closure action can stop the water hammer effect and prevents sudden surges of pressure that could damage pipelines or related equipment. -
Guards Equipment and Pumps
Through stopping reverse flow, this valve protects compressors, pumps as well as other machinery that is critical to the operation from harm. -
Rapid Respond Time
A spring-driven disc lets the valve close promptly when flow slows or ceases, thereby increasing security of the valve. -
Easy Maintenance and Effective operation
The simple structure and robust mechanism help reduce maintenance requirements while maintaining operation of the system.
We are Concorde Valves and Automating We offer Non Slam Disc Check Valves are engineered to provide reliability, durability as well as reliable performance across diverse industrial settings.
Applications of Non Slam Disc Check Valves
Because of their reliability and their ability to limit backflows, Disc Check Valve of Non Slam are used extensively in many industries.
Common applications are:
-
Water Treatment Plants
are used to avoid backflow as well as maintain a constant pressures in water treatment and supply systems. -
Pumping Stations
are installed to shield pumps from damages caused by reverse flow and to guarantee smooth operation. -
Power Generation Plants
Aids in maintaining the flow of fluids and reduces high pressures from affecting critical systems. -
Oil & Gas and HVAC Systems
In pipelines and HVAC systems for regulating flow and enhance overall performance.
Why Choose Concorde Valves & Automations?
Picking the appropriate valve is essential to ensure the safety and efficiency of industrial processes. Concorde Valves & Automations is a specialist in the provision of robust valve solutions that can be used in the latest industrial equipment.
Our Non-Slam Check Valves with Discs are made from high-end components and the latest technology to guarantee durability, effectiveness and a long life. While focusing on the performance and reliability of our products industry, we assist in maintaining the safety and efficiency of pipelines.
Final Thought
A Non Slam Disc Check Valve plays a crucial role in protecting pipeline systems from reverse flow and harmful pressure surges. Its spring-assisted design ensures smooth and controlled closure, helping prevent water hammer while maintaining stable and efficient system operation. Because of its reliable performance and low maintenance requirements, this valve is widely used in industries such as water treatment, power generation, oil and gas, and HVAC systems.
If you are looking for reliable valve solutions, Concorde Valves & Automations offers high-quality valves designed to meet modern industrial standards and deliver long-term performance. Contact US to learn more about our products and find the right valve solution for your industrial application.
