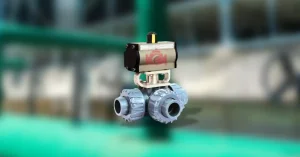

Understanding Pneumatic UPVC 3 Way Ball Valve

Pneumatic UPVC 3 Way Ball Valve are essential for efficient fluid control across multiple industries. With their ability to direct flow in different directions, these valves are used in a range of applications from water treatment to chemical processing and agriculture. Made from UPVC (Unplasticized Polyvinyl Chloride), these valves combine durability, resistance to corrosion, and reliable performance in industrial systems.

Introduction to Pneumatic UPVC 3 Way Ball Valves

Pneumatic UPVC 3 Way Ball Valves are designed for systems where flow control, diversion, or mixing of fluids is needed. These valves feature a ball with a T-shaped or L-shaped bore inside, which allows the valve to either divert, mix, or shut off the flow of fluids depending on the ball’s position. The valve’s operation is controlled pneumatically by an actuator, which uses compressed air to rotate the ball and align it with the desired flow path.

The UPVC material used in these valves ensures that they are highly resistant to corrosion, chemicals, and other environmental factors, making them suitable for various industrial and commercial applications.

Key Features and Benefits – Pneumatic UPVC 3 Way Ball Valve

Pneumatic UPVC 3 Way Ball Valves come with a number of advantages:

Durability: UPVC is known for its high resistance to corrosion and chemicals, which makes it ideal for use in harsh environments.
Efficient Operation: The pneumatic actuator allows for quick and precise valve operation, making it easier to control the flow of fluids in complex systems.
Versatility: The 3-way configuration enables these valves to perform multiple functions, such as diverting or mixing flows, which makes them highly versatile in various setups.
Cost-Effectiveness: Compared to other valve types, UPVC valves offer an affordable solution with minimal maintenance costs.
Lightweight Design: The UPVC material makes these valves lightweight, yet strong enough to handle high-pressure environments.

Working Principle of Pneumatic UPVC 3 Way Ball Valves

The working principle of a Pneumatic UPVC 3 Way Ball Valve is based on the combination of two key components: the pneumatic actuator and the ball valve. The pneumatic actuator uses compressed air to drive the ball inside the valve body.

The ball inside the valve features a hole or bore, which is designed in the shape of a “T” or “L.” When the actuator rotates the ball, it aligns the bore with the desired flow path, allowing for diversion, mixing, or complete shutoff of the fluid flow.

The actuator is activated when compressed air is supplied, and its movement rotates the valve ball, ensuring that the fluid flow is either redirected to a different pipeline or mixed with another fluid stream. The ability to precisely control the ball’s position ensures minimal leakage and accurate flow control.

Applications of Pneumatic UPVC 3 Way Ball Valves

Due to their versatility, Pneumatic UPVC 3 Way Ball Valves are used in a variety of industries:

Water Treatment: These valves are commonly used in water treatment facilities to regulate water flow and manage chemical dosing systems.
Chemical Processing: In chemical processing plants, they are used for controlling and diverting chemicals to different parts of the system. The UPVC material ensures resistance to various chemicals.
Agriculture: They are used in irrigation systems for managing water flow and directing it to the appropriate areas of a farm or agricultural facility.
Industrial Systems: Pneumatic UPVC 3 Way Ball Valves are commonly used in large industrial systems that require precise flow control, such as in oil and gas pipelines, heating systems, and manufacturing facilities.

Specifications and Variants – Pneumatic UPVC 3 Way Ball Valve

Pneumatic UPVC 3 Way Ball Valves come in different sizes and configurations to meet the requirements of various applications. Commonly used sizes include:

3/4 Inch PVC 3-Way Ball Valve: This size is commonly used for smaller applications where space is limited.
1 Inch PVC 3-Way Ball Valve: A popular option for medium-sized applications, this valve is widely used in industrial settings.
1/2 Inch PVC 3-Way Ball Valve: This smaller valve is suitable for applications that require precise control over small volumes of fluid.
3 Inch UPVC Ball Valve Price: Larger 3-inch ball valves are often used in high-flow applications and may come at a higher price, depending on features like actuator type and valve materials.

Pneumatic UPVC 3 Way Ball Valve Catalogue and Fittings

Concorde Valves and Automations offers a comprehensive catalogue for their range of Pneumatic UPVC 3 Way Ball Valves. The catalogue includes detailed technical specifications, available sizes, and actuator options.

Additionally, various fittings and accessories are available to ensure compatibility and optimal performance. These include seals, actuators, and mounting kits designed to ensure the long-term functionality of the valve in different systems.

Choosing the Right Manufacturer for Pneumatic UPVC 3 Way Ball Valve

When selecting a manufacturer for your Pneumatic UPVC 3 Way Ball Valves, it’s important to choose a company that offers:

High-Quality Products: Ensure that the manufacturer is reputable and adheres to industry standards, such as ISO certifications.
Custom Solutions: Opt for a supplier that offers customized valves tailored to your specific system needs.
Customer Support: Look for manufacturers who provide comprehensive support, including installation guides, maintenance services, and responsive customer service.
Concorde Valves and Automations stands out as a trusted manufacturer of high-quality pneumatic UPVC ball valves, offering competitive pricing and long-lasting performance.

Price Range and Availability

The price of Pneumatic UPVC 3 Way Ball Valves can vary based on size, actuator type, and specific features. For instance, the 3 Inch UPVC Ball Valve Price will generally be higher compared to smaller sizes like the 1 Inch PVC 3-Way Ball Valve. The Pneumatic UPVC 3 Way Ball Valve Price also fluctuates depending on the inclusion of features such as electric actuators or additional fittings.

Concorde Valves and Automations provides these valves at competitive prices while ensuring quality and durability. For detailed pricing and product availability, customers can refer to the product catalogue or get in touch with the company directly.

Pneumatic UPVC 3 Way Ball Valves are integral components in various industrial systems, offering versatility, durability, and cost-effectiveness. These valves are ideal for applications that require precise flow control, whether it’s in chemical processing, water treatment, or irrigation systems.

Concorde Valves and Automations is a trusted manufacturer of Pneumatic UPVC 3 Way Ball Valves, offering a range of sizes and configurations to suit different needs. With their high-quality products and comprehensive customer support, Concorde Valves ensures that you get the best solution for your fluid control requirements.
